VSCode Setup and Usage

by Dan Aukes

Installation

VSCodium is an open-source build of the same source code. Download it here: https://github.com/VSCodium/vscodium/releases

Linux Installation:

sudo dpkg -i Downloads/vscodium*.deb

Windows Installation Options:

Accept the default installation path
keep "Register Code as an editor for supported file types" checked
keep "Add to PATH" checked
other options: set to your preference

VSCode: Download from here

Ubuntu-specific

cd ~/Downloads
sudo dpkg -i code_1.7* #.... tab complete
sudo apt install -yf

Useful command-line arguments

Note: this only works if you added vscode to your system PATH

Usage: code [options][paths...]

Example:

code -n ~/websites/danb0b.github.io/

will open a new folder with that path loaded in the explorer window

  -a --add <folder>      Add folder(s) to the last active window.
  -n --new-window        Force to open a new window.
  -r --reuse-window      Force to open a file or folder in an already opened window.
  --extensions-dir <dir> Set the root path for extensions.
  --list-extensions      List the installed extensions.
  --show-versions        Show versions of installed extensions, when using --list-extensions.
  --install-extension <ext-id | path> Installs or updates an extension.
  --uninstall-extension <ext-id>      Uninstalls an extension.
  --enable-proposed-api <ext-id>      Enables proposed API features for
  --disable-extensions            Disable all installed extensions.
  --disable-extension <ext-id>    Disable an extension.
  --sync <on | off>               Turn sync on or off.

Shortcuts

Key Combination	Description
ctrl+shift+p	opens the command window
ctrl+shift+e	opens explorer
ctrl+shift+x	opens extensions
ctrl+shift+g	opens git
ctrl+shift+f	opens search
ctrl+shift+k	remove line
ctrl+shift+/	comment line:
ctrl+up	move line up
ctrl+down	move line down
ctrl+k,v	preview
ctrl+shift+i	format document
ctrl+i	italicize selection
ctrl+b	bold selection
alt+z	switch text wrap mode

Extensions

from here

open a terminal window and paste the following in:

alefragnani.project-manager
bierner.markdown-yaml-preamble
brunnerh.insert-unicode
curlconverter.curlconverter
davidanson.vscode-markdownlint
docker.docker
donjayamanne.githistory
dotjoshjohnson.xml
james-yu.latex-workshop
jscearcy.rust-doc-viewer
mathematic.vscode-latex
mhutchie.git-graph
ms-azuretools.vscode-containers
ms-azuretools.vscode-docker
ms-python.debugpy
ms-python.python
ms-python.vscode-pylance
ms-python.vscode-python-envs
ms-toolsai.jupyter
ms-toolsai.jupyter-keymap
ms-toolsai.jupyter-renderers
ms-toolsai.vscode-jupyter-cell-tags
ms-toolsai.vscode-jupyter-slideshow
ms-vscode-remote.remote-containers
ms-vscode.hexeditor
pkief.markdown-checkbox
pycom.pymakr-preview
redhat.vscode-xml
redhat.vscode-yaml
rust-lang.rust-analyzer
shd101wyy.markdown-preview-enhanced
streetsidesoftware.code-spell-checker
takumii.markdowntable
yzane.markdown-pdf
yzhang.markdown-all-in-one

to install locally you can use:

cat << EOF | xargs -I {} codium --install-extension {}
<...the list above>
EOF

to copy another computer's list of extensions:

ssh <othercomputername> codium --list-extensions | xargs -I {} codium --install-extension {}

for example:

ssh zenbook codium --list-extensions | xargs -I {} codium --install-extension {}^C

code --install-extension alefragnani.project-manager
code --install-extension bierner.markdown-yaml-preamble
code --install-extension curlconverter.curlconverter
code --install-extension davidanson.vscode-markdownlint
code --install-extension docker.docker
code --install-extension dotjoshjohnson.xml
code --install-extension james-yu.latex-workshop
code --install-extension mathematic.vscode-latex
code --install-extension mhutchie.git-graph
code --install-extension ms-azuretools.vscode-docker
code --install-extension ms-python.debugpy
code --install-extension ms-python.python
code --install-extension ms-python.vscode-pylance
code --install-extension ms-toolsai.jupyter
code --install-extension ms-toolsai.jupyter-keymap
code --install-extension ms-toolsai.jupyter-renderers
code --install-extension ms-toolsai.vscode-jupyter-cell-tags
code --install-extension ms-vscode-remote.remote-containers
code --install-extension pkief.markdown-checkbox
code --install-extension pycom.pymakr-preview
code --install-extension redhat.vscode-xml
code --install-extension redhat.vscode-yaml
code --install-extension shd101wyy.markdown-preview-enhanced
code --install-extension streetsidesoftware.code-spell-checker
code --install-extension takumii.markdowntable
code --install-extension yzane.markdown-pdf
code --install-extension yzhang.markdown-all-in-one

I don't use these extensions any more:

#code --install-extension waderyan.gitblame
#code --install-extension tamasfe.even-better-toml
#code --install-extension donjayamanne.githistory
#code --install-extension codezombiech.gitignore
#code --install-extension ms-toolsai.vscode-jupyter-slideshow
#code --install-extension ziyasal.vscode-open-in-github

code --disable-extension waderyan.gitblame
code --disable-extension tamasfe.even-better-toml
code --disable-extension donjayamanne.githistory
code --disable-extension codezombiech.gitignore
code --disable-extension ms-toolsai.vscode-jupyter-slideshow
code --disable-extension ziyasal.vscode-open-in-github

code --list-extensions

Using VS Codium

Note: If you are installing VSCodium, you need to use the command codium instead of code

Change the codium repositories to vscode in order to find all the extensions

sudo nano /usr/share/codium/resources/app/product.json

Replace:

"serviceUrl": "https://open-vsx.org/vscode/gallery",
"itemUrl": "https://open-vsx.org/vscode/item",

with

"serviceUrl": "https://marketplace.visualstudio.com/_apis/public/gallery",
"itemUrl": "https://marketplace.visualstudio.com/items",

Bash script for that:

sudo sed -i 's|"serviceUrl": "https://open-vsx.org/vscode/gallery",|"serviceUrl": "https://marketplace.visualstudio.com/_apis/public/gallery",|g' /usr/share/codium/resources/app/product.json
sudo sed -i 's|"itemUrl": "https://open-vsx.org/vscode/item",|"itemUrl": "https://marketplace.visualstudio.com/items",|g' /usr/share/codium/resources/app/product.json

Finally install extensions

codium --install-extension alefragnani.project-manager
codium --install-extension bierner.markdown-yaml-preamble
codium --install-extension brunnerh.insert-unicode
codium --install-extension curlconverter.curlconverter
codium --install-extension davidanson.vscode-markdownlint
codium --install-extension docker.docker
codium --install-extension donjayamanne.githistory
codium --install-extension dotjoshjohnson.xml
codium --install-extension james-yu.latex-workshop
codium --install-extension jscearcy.rust-doc-viewer
codium --install-extension mathematic.vscode-latex
codium --install-extension mhutchie.git-graph
codium --install-extension ms-azuretools.vscode-containers
codium --install-extension ms-azuretools.vscode-docker
codium --install-extension ms-python.debugpy
codium --install-extension ms-python.python
codium --install-extension ms-python.vscode-pylance
codium --install-extension ms-python.vscode-python-envs
codium --install-extension ms-toolsai.jupyter
codium --install-extension ms-toolsai.jupyter-keymap
codium --install-extension ms-toolsai.jupyter-renderers
codium --install-extension ms-toolsai.vscode-jupyter-cell-tags
codium --install-extension ms-toolsai.vscode-jupyter-slideshow
codium --install-extension ms-vscode-remote.remote-containers
codium --install-extension ms-vscode.hexeditor
codium --install-extension pkief.markdown-checkbox
codium --install-extension pycom.pymakr-preview
codium --install-extension redhat.vscode-xml
codium --install-extension redhat.vscode-yaml
codium --install-extension rust-lang.rust-analyzer
codium --install-extension shd101wyy.markdown-preview-enhanced
codium --install-extension streetsidesoftware.code-spell-checker
codium --install-extension takumii.markdowntable
codium --install-extension yzane.markdown-pdf
codium --install-extension yzhang.markdown-all-in-one
codium --install-extension donjayamanne.githistory

Markdown all-in-one

go to settings @id:editor.defaultFormatter @lang:markdown formatter ctrl_+ shift + I then formats your document

Python

When working with multiple python environments, you should make sure to use the correct one for the task you are doing. To do this, you will need to select from a list of python interpreters. Type ctrl+shift+p then type / select "python select interpreter" from the list.

Debugging Python Code

see this reference to add a debug configuration

pymaker

install pymakr preview

bash code --install-extension Pycom.pymakr-preview

Getting Started with Pymakr (from here)

In File explorer(ctrl+shift+e)
1. add or create a project folder for holding your micropython code (suggestion: name it "micropython"). Consider creating one in your "code" git repository.
navigate to "Pymakr: Projects" tab in the workspace explorer window on the left

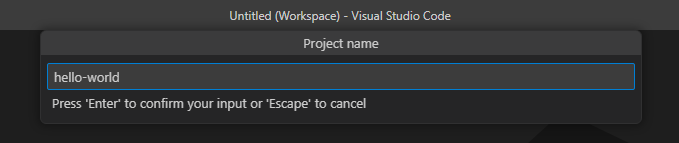

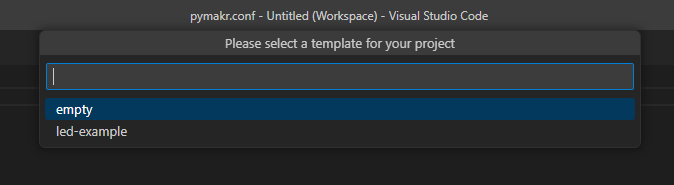

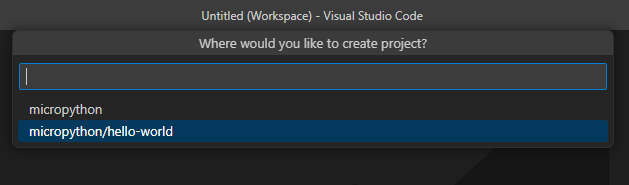

1. select "create project". Select the same code folder as above and specify a project name (like "hello-world"). Select the option to create a subdirectory with the micropython folder.
2. Connect your device via usb to your computer

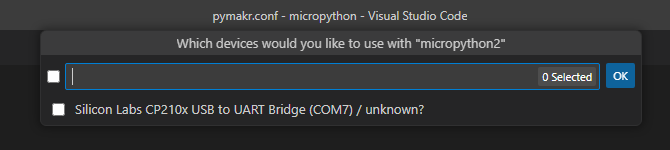

3. Within the "hello-world" project that is created within the "Pymakr: Projects" tab, add a new device. Follow the prompts to select the appropriate com port
4. Connect to the device by selecting the lightning bolt icon
5. Open up a terminal window by selecting the box with an arrow in it
6. A terminal window should open and look like this:

```python MicroPython v1.19.1 on 2022-06-18; ESP32 module with ESP32 Type "help()" for more information.

```
7. At the command prompt, type in

  python print('hello world')

  which should return

  python hello world
8. If you wish to disconnect, you can use:

Working with Micropython

Micropython can either run code from the interpreter (the "terminal" as VSCode puts it), or by loading a file from its onboard storage. When the ESP32 is reset (using the EN button), it looks for two files, in a specific order:

boot.py
main.py

if there are any loops in these files that prevent execution from ending, you must type ctrl+c to terminate execution from the interpreter window. This will stop any python files from running and bring control back to the interpreter

You must always stop execution on the ESP32 before trying to upload files to it.

Saving files to/from the ESP32

Within the "Pymakr: Projects" workspace there are several other buttons that you can use to sync files to the esp32

Upload project to device: Uploads all your project files to the device
Download project from device: Pulls files off the device
Open in Explorer: This opens up the ESP32 as a virtual file system in the file explorer and allows you to investigate and work with the file system directly.

From the file explorer window, you can also right click and select "pymakr-->upload to device" to upload individual files

External Resources

Keybindings

these are typically located in ~/.config/Code/User/keybindings.json

recent settings here

User Settings

located in ~/.config/Code/User/settings.json
